North Texas Pressure Vessels, Inc.






Product Catalog
Table of Contents


  • Box Units
    Box units are a line heater and production separator combined in a single skid-mounted package

  • Filters
    North Texas Pressure Vessels manufactures a wide range of ASME Code filters, coalescers, and filter-separators for the oil, natural gas and petrochemical industries

  • Heaters
    A heater has a gas-fired tube that heats the oil/water mixture, causing the oil to break out and separate from the water and spill over an internal baffle and into the oil section of the vessel.

  • Knockouts (Flare Stack Liquid Knockouts)
    North Texas Pressure Vessels manufactures ASME Code and non-Code flare stack liquid knockouts for the removal of liquids in flare gas, up stream of the flare stack.

  • Phase Separators
    North Texas Pressure Vessels manufactures 2 and 3 phase separators in either vertical or horizontal configurations.

  • Sand Separators
    North Texas Pressure Vessels is home of the SAND SHARK™ sand separator
  • NTPV, Inc. Product Brochures
    View NTPV, Inc. product brochures in PDF format

  • NTPV, Inc. Product Photo Gallery
    View a wide range of NTPV, Inc. product photos
Box Units


Hydrostatic testing of coil assembly   3 phase separator with fuel gas bottle and instrumentation

Coil inlet, choke, vessel inlet, gas and liquid outlets   Completed box unit showing hinged fire tube stack and burner
Box Units


Box units are a line heater and production separator combined in a single skid-mounted package. Our standard box unit consists of a 2" 6,000 psi multi-pass coil assembly with choke, a 24" O.D. X 10' seam/seam X 1,440 psi ASME Code 3 phase horizontal separator with full instrumentation, an 8" fuel gas bottle, and a 12" fire tube with 1 million BTU burner.   The separator, fuel gas bottle and instrumentation are fully enclosed in a heavy-duty box with doors for easy access, and the coil and fire tube assemblies are flanged to allow removal from the water box. All piping tie-in points are located outside the boxes, for easy hook-up.

For price and delivery, or if additional sizing is needed, please contact our sales department at 940-327-0800, or by email at:
Filters


36" O.D. X 4' seam/seam X 450 psi horizontal filter with swing bolt closure   Vertical filter housing with elements installed

  6" fuel gas filter with swing bolt closure
Filters


North Texas Pressure Vessels manufactures a wide range of ASME Code filters, coalescers, and filter-separators for the oil, natural gas and petrochemical industries. Standard housings are provided with a FENIKS swing bolt closure. Other options include blind/flange, threaded, or quick-opening closures.

To discuss your filtration needs, please contact our sales department at 940-327-0800, or by email at:
Heaters

Line Heater

  36" O.D. X 15' seam/seam water chamber with 2" 6000 psi multi-pass coil and 12" fire tube with 750,000 BTU burner
Heater Treater

  Heater Treater with 30" O.D. X 8' seam/seam upper barrel and 36" O.D. X 10' seam/seam lower barrel, with 8" fire tube and 500,000 BTU burner
How The Heater Treater Operates


Gas and liquids enter the heater treater in the upper barrel (green vessel). Gas exits the upper barrel after passing through a mist extractor. Free water exits the upper barrel by way of a liquid level-controlled dump valve. The remaining oil and water enters the lower barrel (tan vessel). The gas-fired tube heats the oil/water mixture, causing the oil to break out and separate from the water and spill over an internal baffle and into the oil section of the vessel. Both the water and oil sections are equipped with liquid level-controlled dump valves for liquid removal.

To request a quote for a line heater or heater treater, please contact our sales department at 940-327-0800, or by email at:
Knockouts


  12-3/4" OD X 6' seam/seam X 125 psi knockout barrel with 3" Inlet/Outlet and 12-3/4" OD X 4' seam/seam liquid sump

  24" OD X 6' seam/seam X 125 psi knockout barrel with 4" Inlet/Outet and 12-3/4" OD X 4' seam/seam liquid sump
Flare Stack Liquid Knockouts


North Texas Pressure Vessels manufactures ASME Code and non-Code flare stack liquid knockouts for the removal of liquids in flare gas, up stream of the flare stack. Units come complete with all necessary control devices and relief valves for simple hook-up in the field.

Please contact our sales department at 940-327-0800 for price and delivery, or by email at:
Phase Separators


  24" OD X 8' seam/seam X 1,000 psi vertical 2 phase separators

  50" ID X 10' seam/seam X 1,440 psi horizontal 3 phase separator
Phase Separators


North Texas Pressure Vessels manufactures 2 and 3 phase separators in either vertical or horizontal configurations. Both ASME Code and non-Code units are available in numerous sizes and pressure ratings, with a variety of connection types (threaded, flanged, hammer union) offered. NACE certification and control equipment is available upon request.

Please contact our sales department at 940-327-0800 for price and delivery, or by email at:
Sand Separators


16" O.D. X 3,000 psi SAND SHARKS™ on L-skids   16" O.D. X 10,000 psi SAND SHARK™ on L-skid

20" O.D. X 5,800 psi SAND SHARK™ on L-skid   30" O.D. X 1,440 psi SAND SHARK™ on L-skid with piping

20" O.D. X 5,800 psi trailer mounted SAND SHARKS™   SAND SHARK™ video demonstrating hydraulic positioning
Sand Separators


North Texas Pressure Vessels is home of the SAND SHARK™ sand separator.  Our patent-pending design operates in ways not found in traditional sand separators, resulting in improved performance and reliability.  All units are designed and manufactured per ASME Section VIII, Division I, with non-Code models also available.

Standard models are:

16" O.D. X 8' seam/seam X 3,000 psi MAWP with 2" 1502 hammer unions

16" O.D. X 8' seam/seam X 10,000 psi MAWP with 2" or 3" 1502 hammer unions

20" O.D. X 8' seam/seam X 5,800 psi MAWP with 2" or 3" 1502 hammer unions

24" O.D. X 8' seam/seam X 5,800 psi MAWP with 2" or 3" 1502 hammer unions

30" O.D. X 8' seam/seam X 1,440 psi MAWP with 3" 1502 hammer unions

Threaded connections (limited by design pressure) and flanged connections (either ANSI or API, based on design pressure) are available in lieu of hammer unions in some applications.  NACE certification is available upon request.  All sand separators are typically mounted on an L-skid.  An optional trailer mount is available, for easy transport to and from the job site, and is equipped with a hydraulic cylinder for field erection (see video).  Please contact our sales department at 940-327-0800 for price and delivery, or by email at:
NTPV Product Brochures


FENIKS Closure Product Line

North Texas Pressure Vessels manufactures the FENIKS swing bolt closure in both ASME Code and non-Code designs


select the brocure to view as a PDF

NTPV Fuel Gas Filter

The NTPV Fuel Gas Filter is designed to offer both solids and liquid removalusing the Jonell MicroLOK "G" ™ Series Coalescing Filter Element


select the brocure to view as a PDF
NTPV Product Brochures



40 FT Portable Flare

North Texas Pressure Vessels manufactures a portable 40 FT Flare that can be moved from site to site for oil and gas wells


select the brocure to view as a PDF

Process Water Filter

Vessels are supplied with an easy to use quick opening closure for quick, safe element removal and a standard oilfield skid for ease of transportation


select the brocure to view as a PDF
NTPV Product Brochures


NTPV Product Brochures

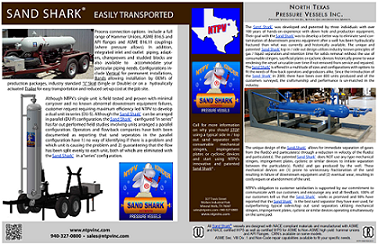

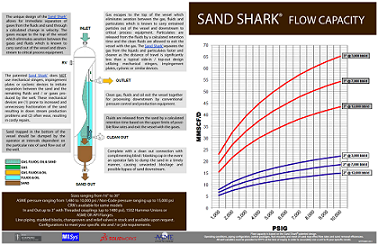

SAND SHARK ®

The Sand Shark® was developed and patented by three individuals with over 100 years of hands-on experience with down hole and production equipment. Their goal with the Sand Shark® was to develop a better way to eliminate sand contamination of downstream process equipment after a well has been hydraulically fractured than what was currently and historically available.


select the brocure to view as a PDF
NTPV Photo Gallery


78" I.D. X 30' seam/seam X 1,200 psi slug catcher   34" O.D. X 10' seam/seam X 500
psi stainless steel knockout pot

10-3/4" O.D. X 20" seam/seam X 1,440 psi strainer   30" O.D. X 10' seam/seam X 500 psi 3 phase separator with 3" meter tube and by-pass and drain piping

30" O.D. X 10' seam/seam X 125 psi water knockout   24" O.D. X 10' seam/seam X 1,000 psi 3 phase separators
NTPV Photo Gallery


8-5/8" O.D. X 18" seam/seam X 1,500 psi fuel gas scrubber   16" O.D. X 8' seam/seam X 10,000 psi SAND SHARK™ in Argentina

Installation of 24" O.D. X 8' seam/seam X 1,440 psi 2 phase separators   24" O.D. X 55" seam/seam X 3,000 psi SAND SHARKS™ on skid bases
